Description

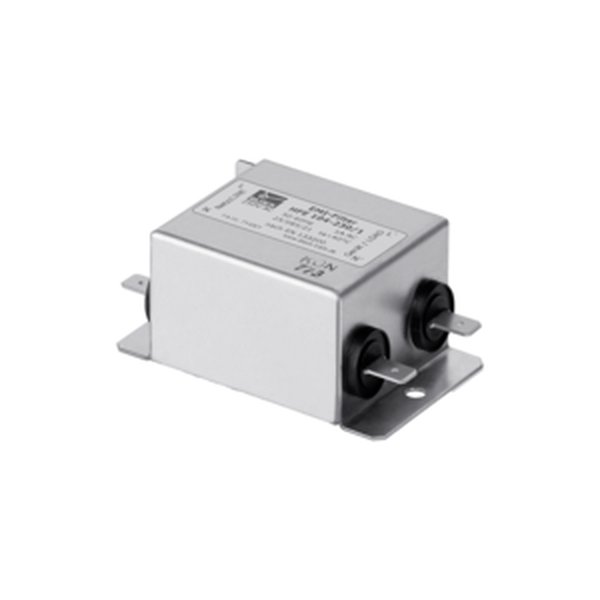

Block HFE 104-230/1 — Radio interference suppression filter. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | HFE 104-230/1 |
| Product Category | Transformers & Reactors |
| Series | HFE 104 |
| Inductance | 10.2 mH |
| Rated current | 1 Aac |
| Rated voltage range | 0 V to 250 V |
| Rated voltage | 230 V |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Power loss | 0.40 W |
| Wire material | Copper |
| Cooling type | AN |
| Ambient temperature | -25 °C to 40 °C / -13 °F to 104 °F |
| Protection type | IP00 |
| Input terminal | Flat plug connection |
| Output terminal | Flat plug connection |
| Terminal PE | Flat plug connection |
| Width | 45 mm / 1.77 in |
| Height | 29 mm / 1.14 in |
| Depth | 75.5 mm / 2.97 in |
| Weight | 0.15 kg / 0.331 lbs |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
