Description

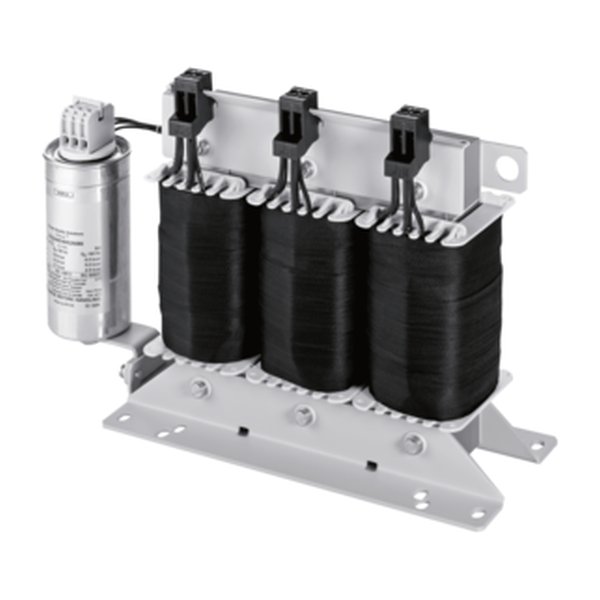

Block HFM-FB 200-400 — Harmonic filter. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | HFM-FB 200-400 |
| Product Category | Transformers & Reactors |
| Series | HFM-FB |
| Inductance | 3x 0 mH |
| Rated current | 3x 289 Aac |
| Linear current | 3x 0 Aac |
| Rated voltage range | 380 V to 420 V |
| Rated voltage | 400 V |
| Frequency range | 50 Hz |
| Wire material | Copper |
| Ambient temperature | 0 °C / 32 °F |
| Max. installation height | 1,000 m / 3,281 ft |
| Input terminal | Bolt connection |
| Output terminal | Bolt connection |
| Width | 1330 mm / 52.36 in |
| Height | 420 mm / 16.54 in |
| Depth | 454 mm / 17.87 in |
| Weight | 280 kg / 617.294 lbs |
| CURus | UL 508 – Recognized |
| Condition | New & original |
| Availability | On request |
Download official Block datasheet (PDF)
Independent distributor — not an authorised Block dealer. All parameters are taken from the official manufacturer documentation.
