Description

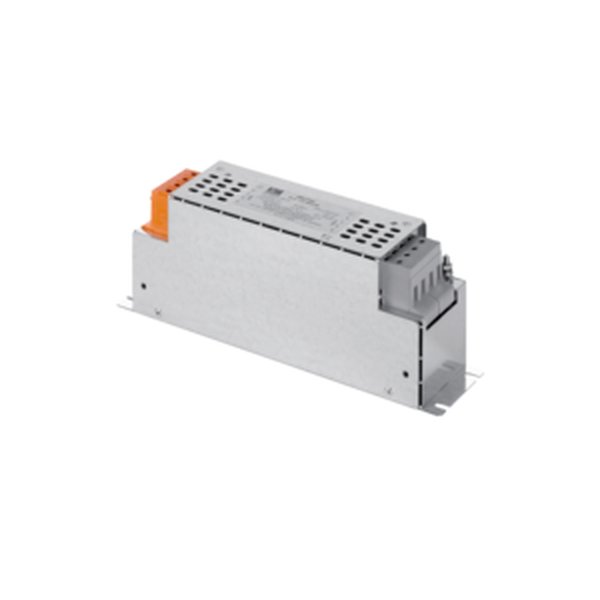

Block HLV 710-500/12. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Block |
|---|---|
| Article No. (MPN) | HLV 710-500/12 |
| Product Category | Transformers & Reactors |
| Series | HLV 710 |
| Inductance | 3x 0.74 mH + N |
| Rated current | 3x 12 Aac + N |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 480 V |
| Phases | 3+N |
| Frequency range | 50 Hz to 60 Hz |
| Motor or converter power | 4 kW / 5.36 HP |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Power loss | 4.80 W |
| Wire material | Copper |
| Cooling type | AN |
| Ambient temperature | -25 °C to 40 °C / -13 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
| Protection type | IP20 |
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
| Width | 55 mm / 2.17 in |
| Height | 220 mm / 8.66 in |
| Condition | New & original |
| Availability | On request |
