Description

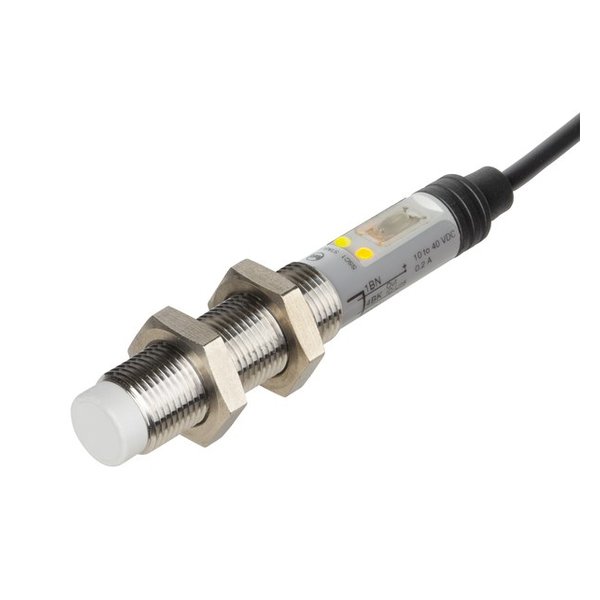

Carlo Gavazzi CA12EAN08BPA2IO — CAP PROX SS. Manufacturer designation: Capacitive Proximity Sensor. Capacitive Proximity Sensor, Non Flush mountable, Sensing Range 8mm, Adjustable 0.5-8mm, Power Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link, Cable PVC, AISI316L Housing M12 x 78mm, 4th Gen. Tripleshield, Improved EMC performances, IP67 IP68 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | CA12EAN08BPA2IO |
| Product Category | Sensors |
| Rated operating distance | 8 mm |
| Installation Type | Non-Flush |
| Diameter | 12 mm |
| Output type | PNP/NPN |
| Output function | Configurable |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Metal |
| Rated power supply | 12 V … 36 V |
| Degree of protection | IP67, IP68 |
| E-Number (NO) | 4368500 |
| IP67 | IP68 |
| C – Sensing principle | Capacitive sensor |
| B – Selectable functions | NPN, PNP, Push-Pull, External Input (only pin 2) or External teach |
| P – Selectable | N.O. or N.C., each output |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
