Description

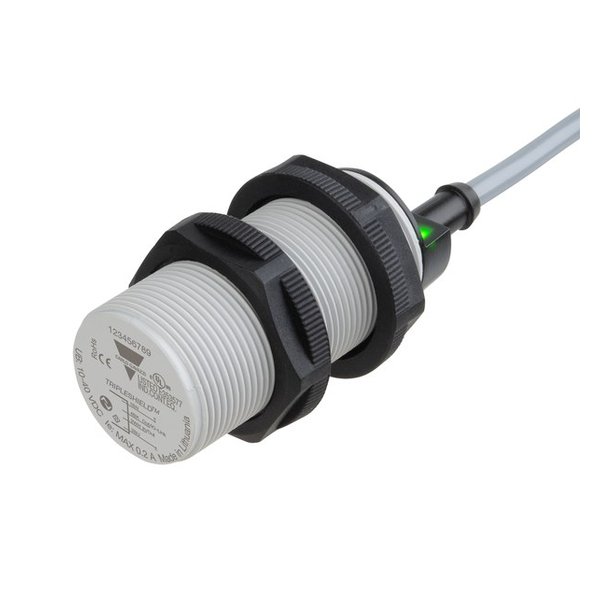

Carlo Gavazzi CA30CBF16BPA2IO — CAP PROX PL. Manufacturer designation: Capacitive Proximity Sensor. Capacitive Proximity Sensor, Flush mountable, Rated Operating Distance 16mm, Multi LED, Adjustable 2-20mm, Power Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link, Cable PVC, Housing M30 x 61mm, 4th Generation Tripleshield, ECOLAB, IP67 IP69K New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | CA30CBF16BPA2IO |
| Product Category | Sensors |
| Rated operating distance | 16 mm |
| Installation Type | Flush |
| Diameter | 30 mm |
| Output type | PNP/NPN |
| Output function | Configurable |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Plastic |
| Rated power supply | 12 V … 36 V |
| Degree of protection | IP67, IP68, IP69K |
| E-Number (NO) | 4317338 |
| E-Number (SE) | 3836275 |
| IP67 | IP69K |
| C – Plastic housing | PBT |
| Selectable | NPN, PNP , Push-Pull, External |
| P – Selectable | N.O. or N.C., each output |
| Response times tON (OFF-ON) | ≤ 10 ms *, tOFF (ON-OFF): ≤ 10 ms * |
| Magnetic field immunity Continuous | > 60 A/m, 75.9 µ tesla, Short-time > 600 A/m, 759 µ tesla (IEC 61000-4-8, |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
