Description

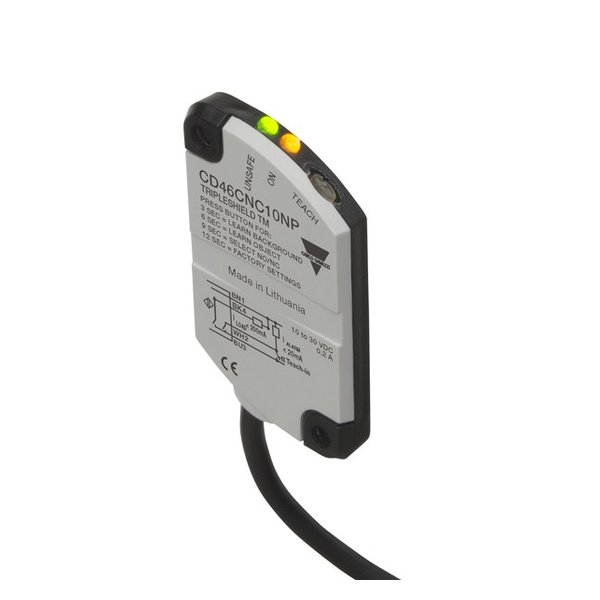

Carlo Gavazzi CD46CNC10NP — CAP PROX PL FLATPACK. Manufacturer designation: Capacitive Proximity Sensor. Capacitive Proximity Sensor, Non-flush mountable, Sensing Range 10mm, Adjustable 1-10mm, Power Supply 10-30VDC, NPN Output, N.O. or N.C., Cable PVC, Housing 28 x 5.5 x 34mm, Tripleshield, Improved EMC performances, IP67 IP68 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | CD46CNC10NP |
| Product Category | Sensors |
| Rated operating distance | 10 mm |
| Installation Type | Non-Flush |
| Output type | NPN |
| Output function | Configurable |
| Connection type | Cable |
| Housing type | Rectangular |
| Housing material | Plastic |
| Rated power supply | 10 V … 30 V |
| Degree of protection | IP68 |
| IP67 | IP68 |
| Adjustment | Background |
| Led | Green |
| Important NPN | If alarm output (WH-wire) is unused, it |
| Important PNP | If alarm output (WH-wire) is unused, it |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
