Description

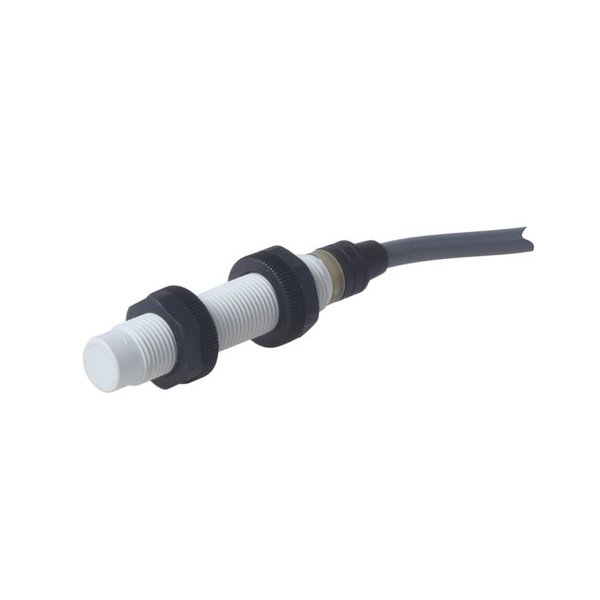

Carlo Gavazzi EI1202PPOPL — IND PROX PL. Manufacturer designation: Inductive proximity sensor. Inductive proximity sensor, M12 Thermoplastic., 2m cable, Sn 2mm, Flush mount, Long body, PNP NO, Supply voltage 10-32Vdc, Max output current 200 mA, Max switching frequency 800Hz, Operating temperature -25C – +70C, IP67. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | EI1202PPOPL |
| Product Category | Sensors |
| Rated operating distance | 2 mm |
| Installation type | Flush |
| Diameter | M12 |
| Output type | PNP |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Plastic |
| Rated power supply | 10 V … 32 V |
| Supply voltage | 10-32Vdc |
| Max output current | 200 mA |
| Max switching frequency | 800Hz |
| Operating temperature | -25C – +70C |
| No-load supply current (Io) Output ON | < 6.5 mA |
| Output OFF | < 2.7 mA |
| Npn | Normally open NPN – Normally closed PNP – Normally open PNP – Normally closed |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
