Description

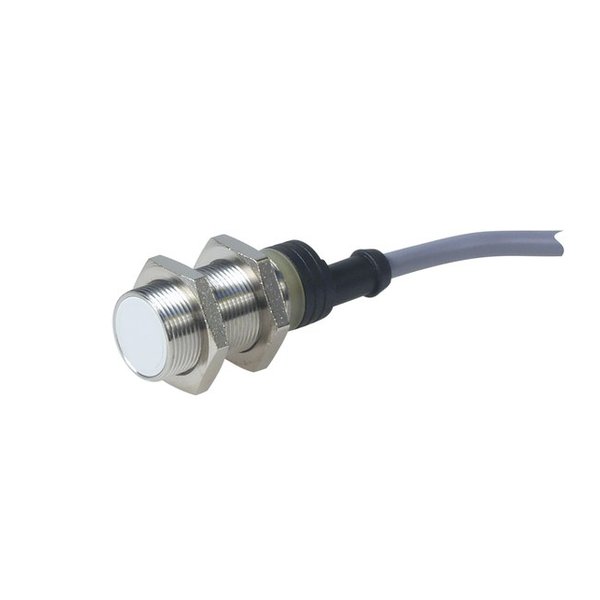

Carlo Gavazzi EI1805PPCSS — IND PROX SS. Manufacturer designation: Inductive proximity sensor. Inductive proximity sensor, M18 Stainless steel, 2m cable, Sn 5mm, Flush mount, Short body, PNP NC, Supply voltage 10-40Vdc, Max output current 200 mA, Max switching frequency 500Hz, Operating temperature -25C – +70C, IP67. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | EI1805PPCSS |
| Product Category | Sensors |
| Rated operating distance | 5 mm |
| Installation type | Flush |
| Diameter | M18 |
| Output type | PNP |
| Output function | Normally Closed (NC) |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Metal |
| Rated power supply | 10 V … 40 V |
| E-Number (SE) | 3830198 |
| Supply voltage | 10-40Vdc |
| Max output current | 200 mA |
| Max switching frequency | 500Hz |
| Operating temperature | -25C – +70C |
| Housing Body Connec | Rated Ordering no. Ordering no. Or der ing no. Ordering no. |
| No-load supply current (Io) Output ON | < 6.5 mA |
| Output OFF | < 2.7 mA |
| Npn | Normally open |
| Pnp | Normally open |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
