Description

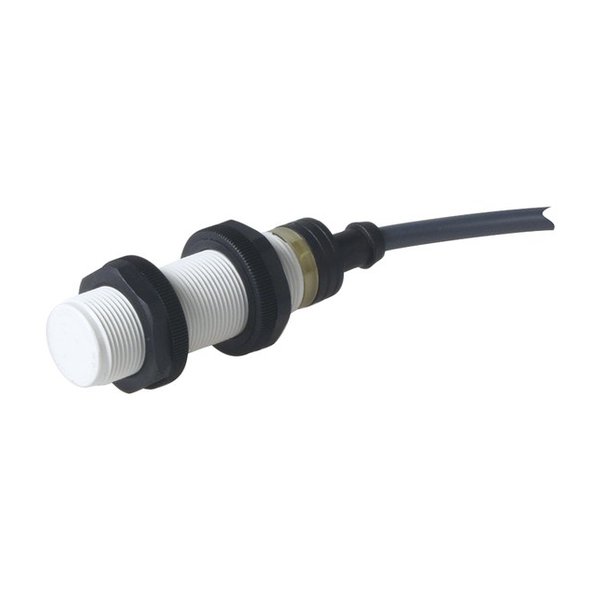

Carlo Gavazzi EI1805TBOPL — IND PROX PL. Manufacturer designation: Inductive proximity sensor. Inductive proximity sensor, M18 Plastic, 2m cable, Sn 5mm, Long body, SCR NO, Supply voltage 20-250 Vac, Max output current 500 mA, Max switching frequency 25Hz, Operating temperature -25C – +70C, IP67 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | EI1805TBOPL |
| Product Category | Sensors |
| Rated operating distance | 5 mm |
| Installation type | Flush |
| Diameter | M18 |
| Output type | Other |
| Output function | Normally Open (NO) |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Plastic |
| Rated power supply | 20 V … 250 V |
| Supply voltage | 20-250 Vac |
| Max output current | 500 mA |
| Max switching frequency | 25Hz |
| Operating temperature | -25C – +70C |
| MFJ Short Yable Hzmmz F | EIwHU)6wTBOPS |
| MFJ Long Yable Hzmmz F | EIwHU)6wTBOPL |
| MFJ Long Yable J mm U | EIwHU)UwTBOPL EIwHU)UwTBCPL |
| MFJ Long Plug Jzmm U | EI HU)UwTBCPLfF |
| RatedwoperationalwvoltNwmUe | U,ztozU,2zV:Y |
| OFFfstatewcurrentwmIr | ≤ U m |
| VoltagewdropwmUd | ≤ J V:Yzatzmax8zload |
| RepeatwaccuracywmR | ≤ HI |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
