Description

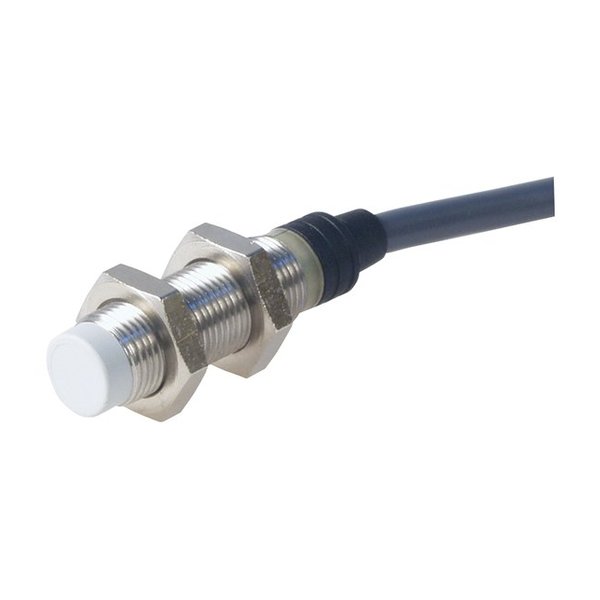

Carlo Gavazzi IA12ESN04UC — IND PROX SS. Manufacturer designation: Inductive proximity sensor. Inductive proximity sensor, M12 Stainless steel, 2m cable, Sn 4mm, Non-flush mount, Short body, Namur NC, Supply voltage 7-9Vdc, Max output current 9,35 mA, Max switching frequency 1200Hz, Operating temperature -25C – +70C, IP67. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | IA12ESN04UC |
| Product Category | Sensors |
| Rated operating distance | 4 mm |
| Installation type | Flush |
| Diameter | M12 |
| Output type | Namur |
| Output function | Normally Closed (NC) |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Metal |
| Rated power supply | 7 V … 9 V |
| E-Number (SE) | 3834222 |
| Supply voltage | 7-9Vdc |
| Max output current | 9 |
| Max switching frequency | 1200Hz |
| Operating temperature | -25C – +70C |
| No-load supply current (Io) Activated | ≤1 mA |
| Not activated | ≥ 2.2 mA |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
