Description

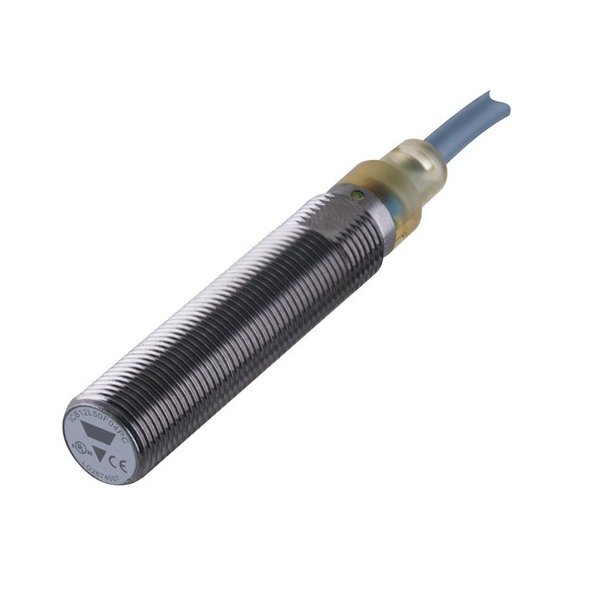

Carlo Gavazzi ICB12L50F04NC — PROX SENSOR IND.. Manufacturer designation: Inductive proximity sensor. Inductive proximity sensor, M12 Nickel-Plated Brass, 2m cable, Sn 4mm, Flush mount, Long body, NPN NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C – +70C, IP67 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | ICB12L50F04NC |
| Product Category | Sensors |
| Rated operating distance | 4 mm |
| Installation type | Flush |
| Diameter | M12 |
| Output type | NPN |
| Output function | Normally Closed (NC) |
| Connection type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Metal |
| Rated power supply | 10 V … 36 V |
| Supply voltage | 10-36Vdc |
| Max output current | 200 mA |
| Max switching frequency | 2 kHz |
| Operating temperature | -25C – +70C |
| Icb | Proximity inductive sensors, nickel-plated brass housing |
| S Housing length | short |
| L Housing length | long |
| F Detection principle | flush mounting |
| N Detection principle | non-flush mounting |
| N Output type | NPN |
| P Output type | PNP |
| O Output configuration | normally open |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
