Description

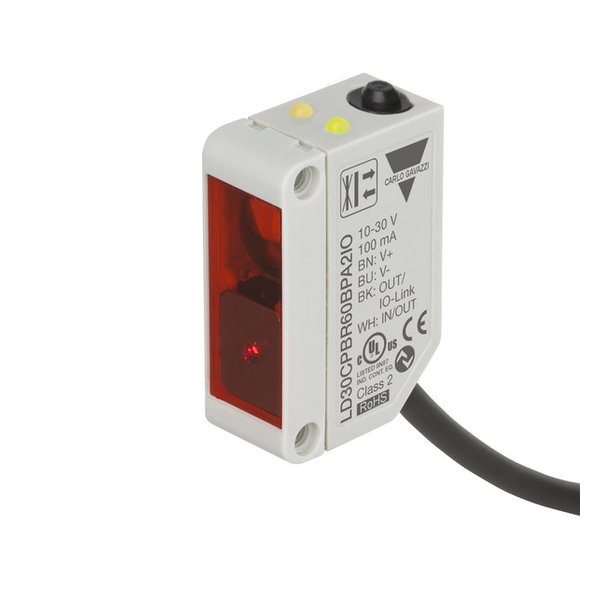

Carlo Gavazzi LD30CPBR60BPA2IO — LASER BGS RED. Manufacturer designation: Photoelectric Laser Sensor with Adjustable Back/Foreground Suppression. Photoelectric Laser Sensor with Adjustable Back/Foreground Suppression, IO-Link, Range: 0-600mm, Red Laser Class 1, 650nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., Cable connection, 10x30x20mm housing Plastic, IP67 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | LD30CPBR60BPA2IO |
| Product Category | Sensors |
| Rated operating distance | 600 mm |
| Output type | PNP/NPN |
| Output function | Configurable |
| Connection type | Cable |
| Housing type | Rectangular |
| Housing material | Plastic |
| Emitted light | Laser diode, red light |
| Sensing mode | Light-/dark switching |
| Degree of protection | IP67 |
| Rated power supply | 10 V … 30 V |
| E-Number (NO) | 4304663 |
| Object and Gap Monitoring | Function that can sort out good objects and gaps between them so e.g. a |
| L – Sensing principle | Photoelectric laser sensor |
| B – Selectable functions | NPN, PNP, Push-Pull, External Input (only pin 2) or External teach |
| P – Selectable | N.O. or N.C. |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
