Description

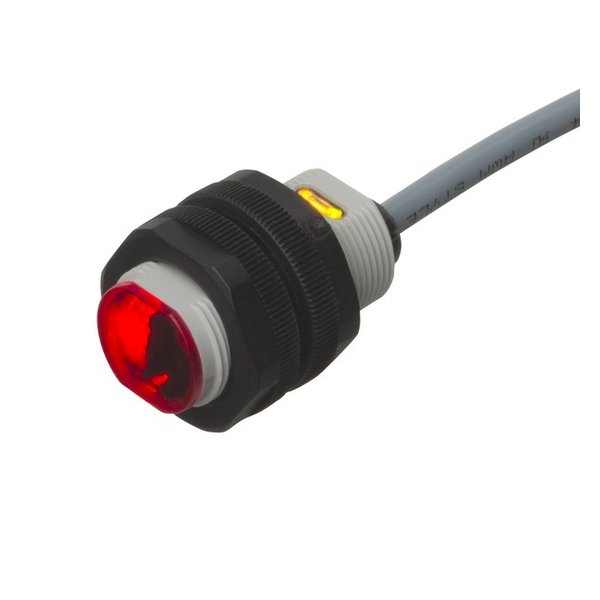

Carlo Gavazzi PA18CAD04NAWS — PHOTO AX DR PL. Manufacturer designation: Diffuse-reflective Photoelectric Sensor. Diffuse-reflective Photoelectric Sensor, range 0-400mm, modulated red light 625nm, Power Supply 10-30VDC, NPN, NO+NC, 2m Cable, IP69K New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | PA18CAD04NAWS |
| Product Category | Sensors |
| Rated operating distance (Sn) | 0 mm … 400 mm |
| Output type | NPN |
| Output function | Other |
| Connection Type | Cable |
| Housing type | Cylindrical, threaded barrel |
| Housing material | Plastic |
| Light source | Polarity free red light |
| Sensing mode | Light/dark switching |
| Degree of protection | IP67, IP69K |
| Rated power supply | 10 V … 30 V |
| Weight With cable | 85 g |
| With plug | 25 g |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
