Description

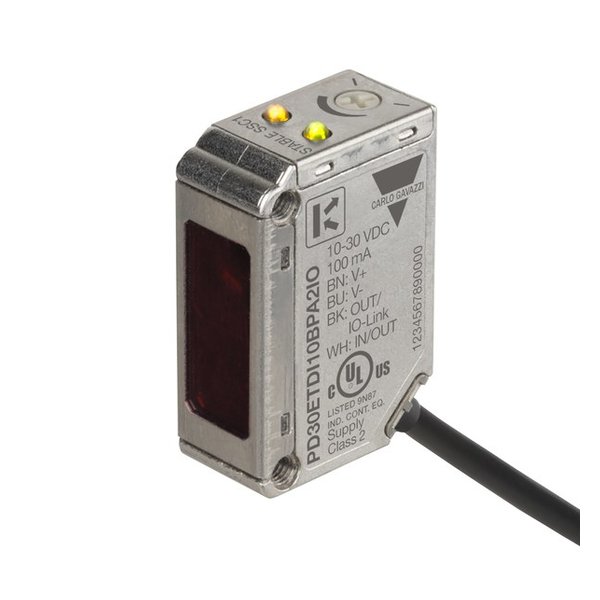

Carlo Gavazzi PD30ETDI10BPA2IO — PHOTO DR IR. Manufacturer designation: Diffuse-reflective Photoelectric Sensor. Diffuse-reflective Photoelectric Sensor, IO-Link, range 1000 mm, infrared modulated light 850nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., 2m Cable, 11x31x21mm housing Stainless Steel, IP68 IP69K, ECOLAB New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | PD30ETDI10BPA2IO |
| Product Category | Sensors |
| Rated operating distance (Sn) | 0 mm … 1000 mm |
| Output type | PNP/NPN |
| Output function | Configurable |
| Connection Type | Cable |
| Housing type | Rectangular |
| Housing material | Metal |
| Light source | Infrared light |
| Sensing mode | Light/dark switching |
| Degree of protection | IP67, IP68, IP69K |
| Rated power supply | 10 V … 30 V |
| E-Number (NO) | 4301304 |
| IP68 | IP69K |
| Object and Gap Monitoring | Function that can sort out good objects and gaps between them so e.g. a |
| P – Sensing principle | Photoelectric sensor |
| B – Selectable functions | NPN, PNP, Push-Pull, External Input (only pin 2) or External teach |
| P – Selectable | N.O. or N.C. |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
