Description

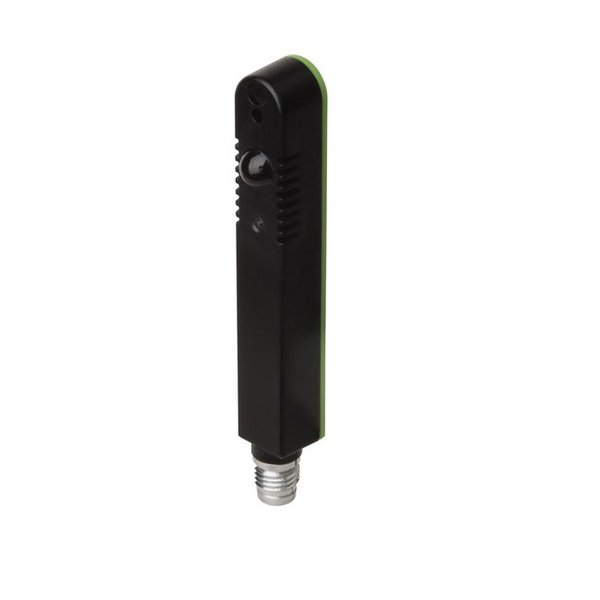

Carlo Gavazzi PD70CNT12PCM5 — PHOTO TR. Manufacturer designation: Through-beam Photoelectric Receiver. Through-beam Photoelectric Receiver, Range 12m, Power Supply 10-30VDC, PNP Output, NC, Dark Switching, Connector M8, ESPE type 2, EN12445, EN12453, EN12978, UL325 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | PD70CNT12PCM5 |
| Product Category | Sensors |
| Rated operating distance | 12000 mm |
| Output type | PNP |
| Output function | Normally Closed (NC) |
| Connection type | Connector M8 |
| Housing type | Rectangular |
| Housing Material | Plastic |
| Type of light | Infrared light |
| Sensing mode | Dark switching |
| Degree of protection | IP67 |
| Rated Operational voltage UB at DC | 10 V … 30 V |
| Test Range Con | Ordering no. Ordering no. Ordering no. Ordering no. Ordering no. |
| S n nec | Receiver Receiver Receiver Receiver Emitter |
| Cable PVC, TX | grey / RX: black, |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
