Description

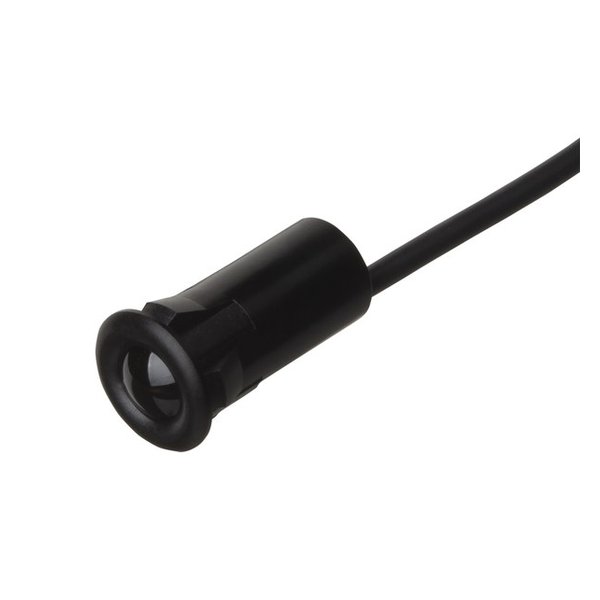

Carlo Gavazzi PE12CNT15NOC2 — PHOTO TR PL. Manufacturer designation: Through-beam Photoelectric Receiver. Through-beam Photoelectric Receiver, Range 15m, Infrared modulated light 880nm, Power Supply 10-30VDC, NPN Output, NO, Light Switching, 5m Cable with Connector, ESPE type 2, EN12445, EN12453, EN12978, UL325, UL508 New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | PE12CNT15NOC2 |
| Product Category | Sensors |
| Rated operating distance | 15000 mm |
| Output type | NPN |
| Output function | Normally Open (NO) |
| Connection type | Cable with connector |
| Housing type | Special construction |
| Housing Material | Plastic |
| Type of light | Infrared light |
| Sensing mode | Light switching |
| Degree of protection | IP67 |
| Rated Operational voltage UB at DC | 10 V … 30 V |
| Housing Range Con | Ordering no. Ordering no. Ordering no. Ordering no. Ordering no. |
| Cable PVC, Emitter | grey / |
| Receiver | black, |
| Condition | New & original |
| Availability | On request |
Download official Carlo Gavazzi datasheet (PDF)
Independent distributor — not an authorised Carlo Gavazzi dealer. All parameters are taken from the official manufacturer documentation.
