Description

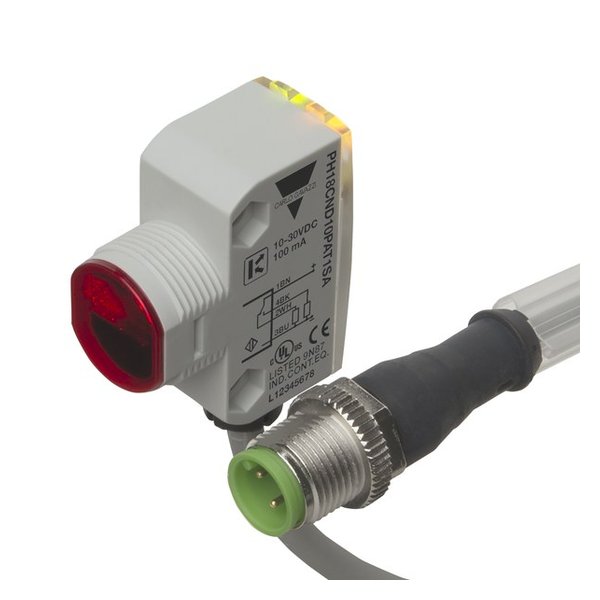

Carlo Gavazzi PH18CND10PAT1SA — PHOTO SQ DR PL. Manufacturer designation: Diffuse-reflective Photoelectric Sensor. Diffuse-reflective Photoelectric Sensor, range 1000 mm, red modulated light 625nm, Power Supply 10-30VDC, PNP, NO+NC, M12 Pig-tail, IP69K, ECOLAB New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Carlo Gavazzi |
|---|---|
| Article No. (MPN) | PH18CND10PAT1SA |
| Product Category | Sensors |
| Rated operating distance (Sn) | 0 mm … 1000 mm |
| Output type | PNP |
| Output function | Other |
| Connection Type | Connector M12 |
| Housing type | Special construction |
| Housing material | Plastic |
| Light source | Polarity free red light |
| Sensing mode | Light/dark switching |
| Degree of protection | IP67, IP69K |
| Rated power supply | 10 V … 30 V |
| Weight With cable | 85 g |
| With pigtail | 40 g |
| With plug | 25 g |
| Condition | New & original |
| Availability | On request |
