Description

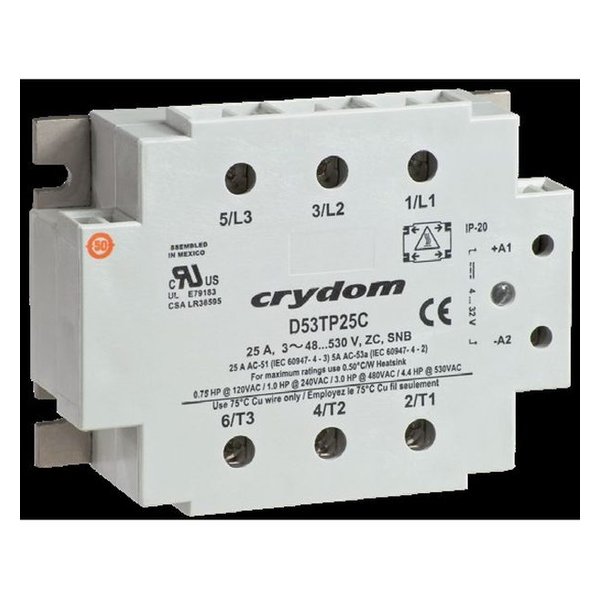

Crydom 53TP — SSR Relay. Manufacturer designation: 4-32 vdc 50 a. SSR Relay, 3-Phase, Panel Mount, IP20, 530VAC/50A, 4-32VDC In, Zero Cross New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Crydom |
|---|---|
| Model / Type | 53TP |
| Article No. (MPN) | D53TP50C |
| Product Category | Contactors |
| Transient Overvoltage [Vpk] (2) | 1200 |
| [mArms] | 3 |
| Minimum Off-State dv/dt @ Maximum Rated Voltage [V/sec] (2) | 500 |
| Maximum Load Current [Arms] (3) | 50 |
| Minimum Load Current [Arms] | 0.1 |
| Maximum 1 Cycle Surge Current (50/60 Hz) [Apk] | 710/750 |
| Maximum 1 Second Surge Current (50/60 Hz) [Apk] | 150 |
| Maximum On-State Voltage Drop @ Rated Current [Vpk] | 1.35 |
| Thermal Resistance Junction to Case (Rjc) [°C/W] | 0.12 |
| Maximum 1/2 Cycle I²t for Fusing (50/60 Hz) [A² sec] | 2520/2320 |
| Minimum Power Factor (with Maximum Load) | 0.5 |
| UL/IEC 60947 Motor Control Ratings at 120V [HP/KW] (4) | 1.5/1.11 |
| UL/IEC 60947 Motor Control Ratings at 240V [HP/KW] (4) | 3/2.22 |
| UL/IEC 60947 Motor Control Ratings at 380V [HP/KW] (4) | 5/3.7 |
| UL/IEC 60947 Motor Control Ratings at 480V [HP/KW] (4) | 7.5/5.55 |
| Dielectric Strength, Input/Output/Base (50/60 Hz) | 4000 Vrms |
| Minimum Insulation Resistance (@ 500 VDC) | 10^9 Ohms |
| Maximum Capacitance, Input/Output | 8 pF |
| Ambient Operating Temperature Range | -40ºC to 80ºC |
| Ambient Storage Temperature Range | -40ºC to 125ºC |
| Condition | New & original |
| Availability | On request |
Download official Crydom datasheet (PDF)
Independent distributor — not an authorised Crydom dealer. All parameters are taken from the official manufacturer documentation.
