Description

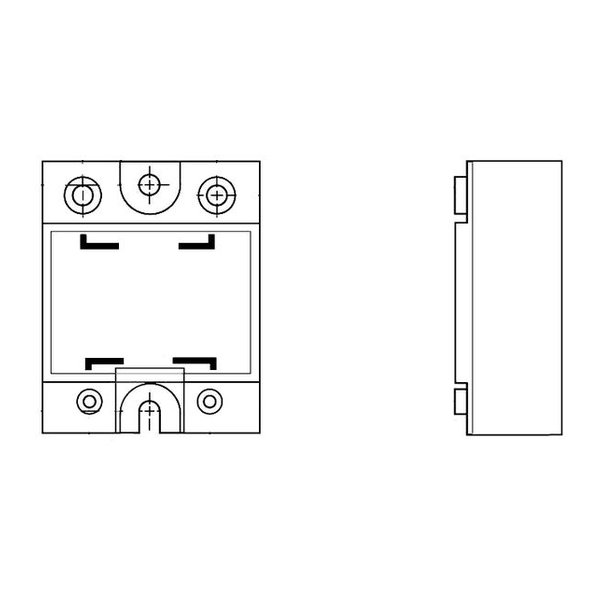

Crydom LVD — Low Voltage Disconnect SSR. Manufacturer designation: 11.0 – 11.5 vdc 100A. Low Voltage Disconnect SSR, Panel Mount, 75VDC/100A, 11.5/11.0VDC Control New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Crydom |
|---|---|
| Model / Type | LVD |
| Article No. (MPN) | LVD75A100 |
| Product Category | Relays & Couplers |
| Maximum Load Current [Adc] (B) | 100 |
| Minimum Load Current [mAdc] | 5 |
| Maximum Surge Current(10msec) [Adc] | 250 |
| Maximum On-State Voltage Drop @ Rated Current [Vdc] | 0.5 |
| Thermal Resistance Junction to Case (Rjc) [°C/W] | 0.4 |
| Maximum Off-State Leakage Current @ Rated Voltage [mA] | 0.5 |
| Must Turn-On Voltage [Vdc] (C) | 11.5 |
| Must Turn-Off Voltage [Vdc] (C) | 11 |
| Maximum Allowed input Voltage [Vdc] | 36 |
| Maximum Input Current [mAdc] | 12 |
| Maximum Turn-On Time [msec] | 150 |
| Maximum Turn-Off Time [msec] | 150 |
| Dielectric Strength, Input/Output to Baseplate (60Hz) (D) | 2500 Vrms |
| Minimum Insulation Resistance (@ 500 VDC) | 10 9 Ohms |
| Maximum Capacitance, Input/Output | 50 pF |
| Ambient Operating Temperature Range | -30 to 80˚C |
| Ambient Storage Temperature Range | -40 to 125˚C |
| Weight (typical) | 3.5 oz (100 g) |
| Condition | New & original |
| Availability | On request |
Download official Crydom datasheet (PDF)
Independent distributor — not an authorised Crydom dealer. All parameters are taken from the official manufacturer documentation.
