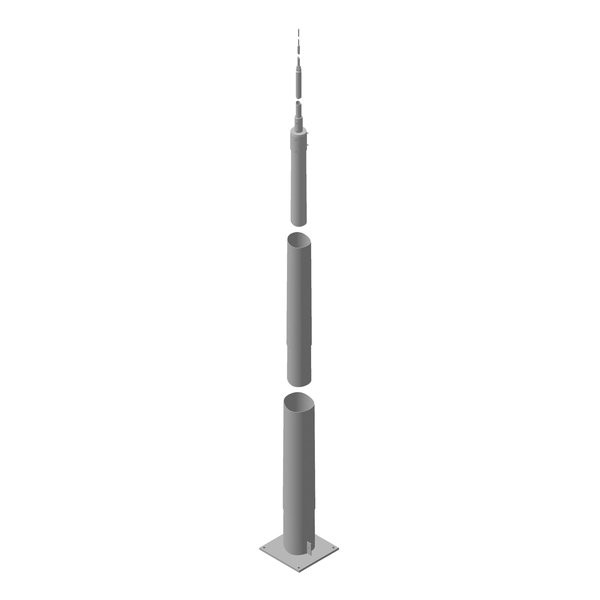

Dehn TBM 19.35M FP565 STTZN — Lightning Protection Mast Telescopic. Manufacturer designation: Telescopic lightning protection mast for bucket or concrete foundation. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | TBM 19.35M FP565 STTZN |
| Article No. (MPN) | 103019 |
| Product Category | Earthing & Lightning Protection |
| Material | St/tZn |
| Height above ground level (l1) | 19380 mm |
| Max. gust wind speed with Concrete foundation | 131 km/h |
| Max. gust wind speed with bucket foundation | 107 km/h |
| Dimensions of flange plate | 400 x 400 mm |
| Type of flange plate | 4x Ø27 mm for 4x M24 (300 x 300 mm) |
| Dim. of on-site concrete foundation (l x w x h) | 1600 x 1600 x 900 mm |
| Standard | EN 62561-(1+2) |
| EAN / GTIN | 4013364129832 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
