Description

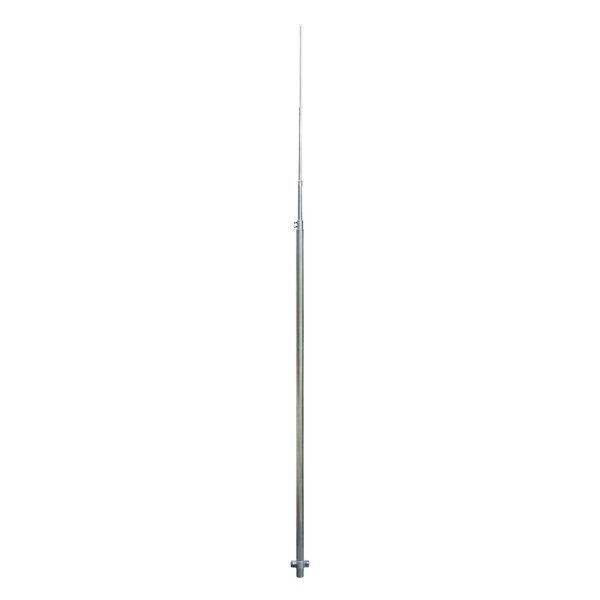

Dehn FS D40 16 10 8000 KSV V2A — Air-Termination Rod. Manufacturer designation: StSt. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | FS D40 16 10 8000 KSV V2A |
| Article No. (MPN) | 105194 |
| Product Category | Earthing & Lightning Protection |
| Total length (l1) | 8000 mm |
| Max. free length with air-termination rod (l2) | 5500 mm |
| Clamping length (l3) | 2500 mm |
| Max. gust wind speed | (Wall mounting with a free length of 5,500 mm) 149 km/h |
| Material of air-termination rod | StSt |
| Standard | EN 62561-(1+2) |
| EAN / GTIN | 4013364152083 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
