Description

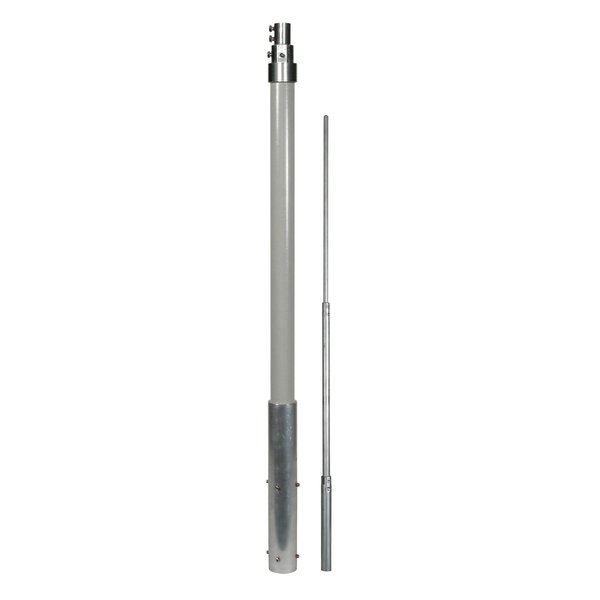

Dehn SR D50 1950 FS22 16 10 2500 DSH GFK AL — Supporting Tube. Manufacturer designation: With air-termination rod. Supporting tube with internal sealing end and air-termination rod Ø22/ New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | SR D50 1950 FS22 16 10 2500 DSH GFK AL |
| Article No. (MPN) | 105281 |
| Product Category | Earthing & Lightning Protection |
| Material of air-termination rod | Al |
| Length of air-termination rod | 2500 mm |
| Material of supporting tube | GRP / Al |
| Length of supporting tube | 1955 mm |
| Transport length | 2500 mm |
| Diameter Ø outside | 50 mm |
| Length of insulating clearance | 1560 mm |
| Max. gust wind speed | 140 km/h |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
| EAN / GTIN | 4013364260962 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
