Description

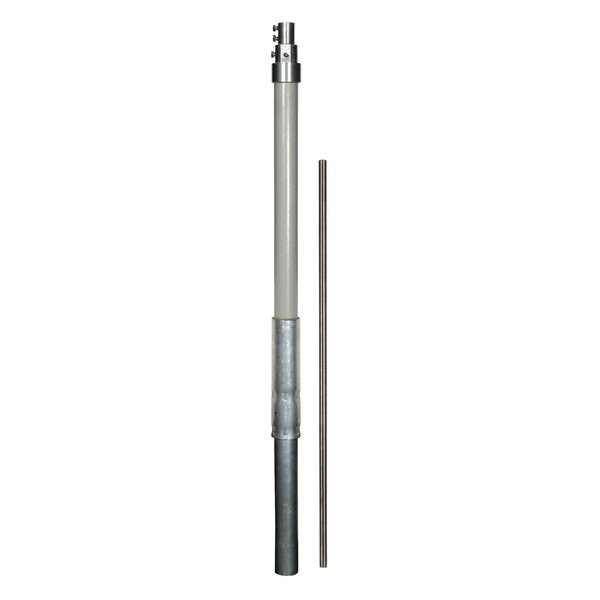

Dehn SR D50 4700 FSP1000 IP HVI GFK AL — Supporting Tube. Manufacturer designation: With air-termination tip. Supporting tube with internal sealing end and EB spring element. Air-t New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | SR D50 4700 FSP1000 IP HVI GFK AL |
| Article No. (MPN) | 105332 |
| Product Category | Earthing & Lightning Protection |
| Material of air-termination tip | StSt |
| Length of air-termination rod | 1000 mm |
| Material of supporting tube | GRP / Al |
| Length of supporting tube | 4700 mm |
| Transport length | 4700 mm |
| Diameter Ø outside | 50 mm |
| Length of insulating clearance | 1535 mm |
| Max. free length with air-termination tip (wall mounting) | 4000 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
| EAN / GTIN | 4013364152519 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
