Description

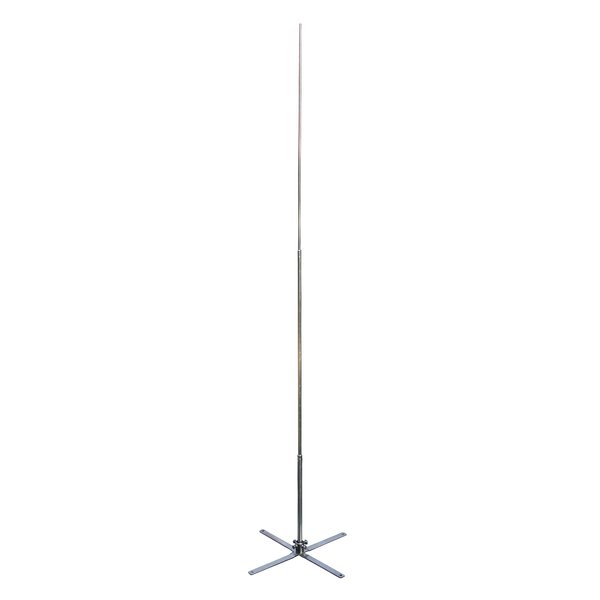

Dehn FS 22 16 10 3000 SK AL V2A — Air-Termination Rod For Metal Roofs. Manufacturer designation: Height up to 3500 mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | FS 22 16 10 3000 SK AL V2A |
| Article No. (MPN) | 123430 |
| Product Category | Earthing & Lightning Protection |
| Total length (Ø22 / 16 / 10 mm) | 3000 mm |
| Max. gust wind speed | 149 km/h |
| Profile distance | 230-520 mm |
| Fixing | [4x] Ø9 mm |
| Material of brace | StSt |
| Material of air-termination rod | Al |
| Standard | EN 62561-(1+2) |
| EAN / GTIN | 4013364129016 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
