Description

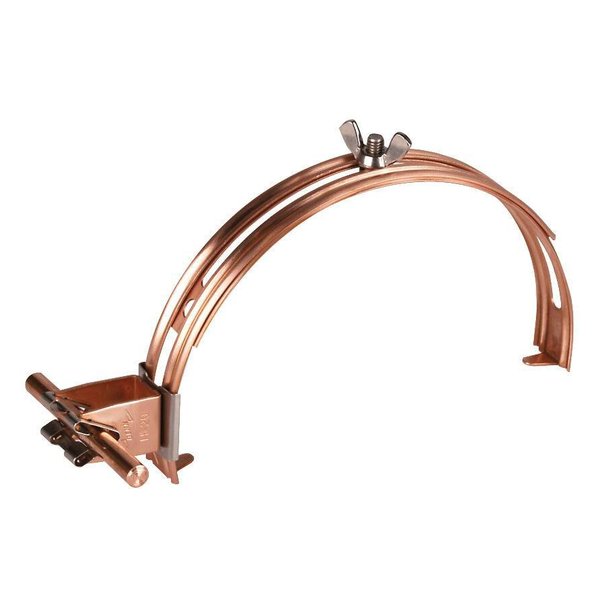

Dehn DLH DG 8 H20 FG180.280 KK GALCU — Roof Conductor Holder Grip. Manufacturer designation: Steplessly adjustable with conductor holder DEHNgrip. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | DLH DG 8 H20 FG180.280 KK GALCU |
| Article No. (MPN) | 206807 |
| Product Category | Earthing & Lightning Protection |
| Material of roof conductor holder | Cu |
| Clamping range | 180-280 mm |
| Height of conductor holder (h1) | 20 mm |
| Material of conductor holder | Cu |
| Conductor support Rd | 8 mm |
| Length of clamping claw | 15 mm |
| Standard | EN 62561-4 |
| EAN / GTIN | 4013364046306 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
