Description

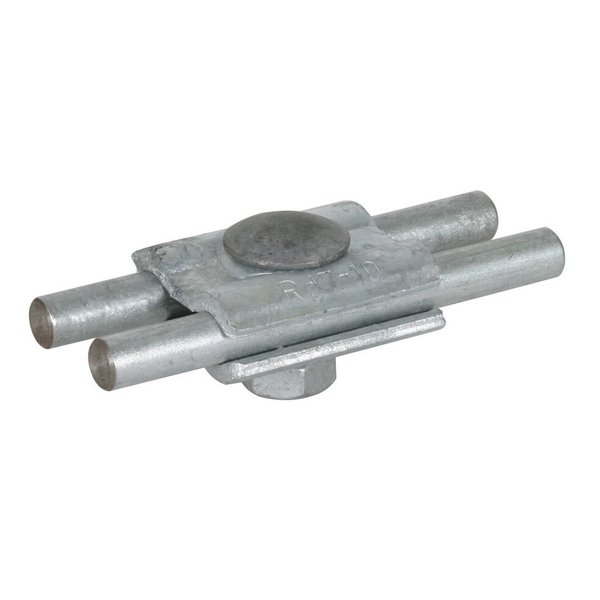

Dehn PV 7.10 FRM10X35 STTZN — Lightning Protection Connector Parallel. Manufacturer designation: For equal diameters with one screw. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | PV 7.10 FRM10X35 STTZN |
| Article No. (MPN) | 306020 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | St/tZn |
| Clamping range Rd / Rd | 7-10 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 4.0 kA |
| EAN / GTIN | 4013364096264 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
