Description

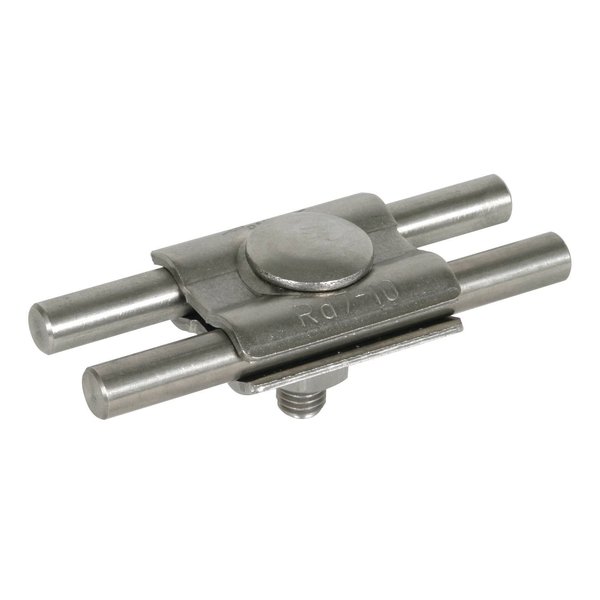

Dehn PV 7.10 FRM10X35 V4A — Lightning Protection Connector Parallel. Manufacturer designation: For equal diameters with one screw. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | PV 7.10 FRM10X35 V4A |
| Article No. (MPN) | 306029 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | StSt (V4A) |
| Material No. clamp | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI clamp | 316Ti / 316L / 316 |
| Clamping range Rd / Rd | 7-10 mm |
| Clamping range (stranded / cable) | 25-120 mm² |
| Material No. bolt / nut | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI bolt / nut | 316Ti / 316L / 316 |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 2.9 kA |
| EAN / GTIN | 4013364129467 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
