Description

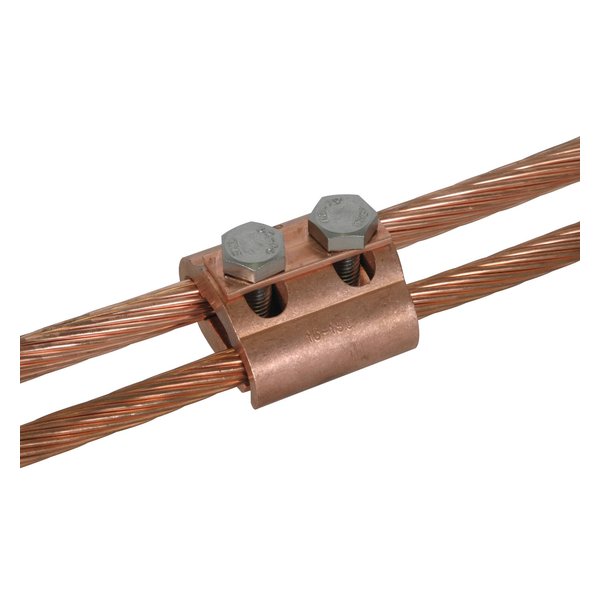

Dehn PV 5.16 SKM10X50 CU — Lightning Protection Connector Parallel. Manufacturer designation: For equal and different cable diameters, large. With thread in the base part and lock nut M10 Specified short-circuit New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | PV 5.16 SKM10X50 CU |
| Article No. (MPN) | 306101 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | Cu |
| Clamping range Rd / Rd | 5-16 mm |
| Clamping range (stranded / cable) | 16-150 mm² |
| Material No. bolt / nut | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI bolt / nut | 316Ti / 316L / 316 |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 18.5 kA |
| EAN / GTIN | 4013364024120 |
| Condition | New & original |
| Availability | On request |
