Description

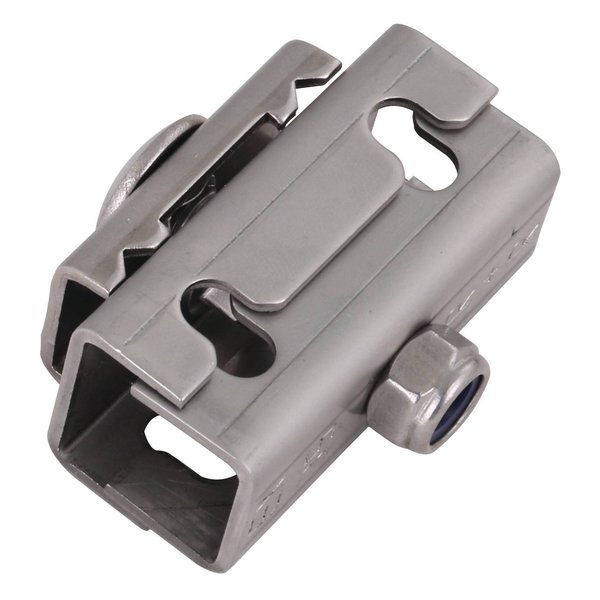

Dehn PAK 35 M8 EX GI ER — Equipotential Bonding Clamp. Manufacturer designation: EB clamp for wire cable trays. Equipotential bonding clamp for wire cable trays – Connection only wit New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | PAK 35 M8 EX GI ER |
| Article No. (MPN) | 306203 |
| Product Category | Surge Protection |
| Material | StSt |
| Material No. | 1.4301 |
| Astm / aisi | AISI 304 |
| Connection to | PAP 1 EX GI ER / PAP 2 EX GI ER or wire cable tray |
| Clamping range EB ring conductor | 35 mm², Cu/gal Sn |
| Screw | M8 x 40 mm |
| Material of screw / nut | StSt |
| Material No. bolt / nut | 1.4301 |
| ASTM / AISI bolt / nut | AISI 304 |
| EX zone | 2/22 |
| Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
| Short-circuit current DC (5 s) | 250 A |
| EAN / GTIN | 4013364327382 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
