Description

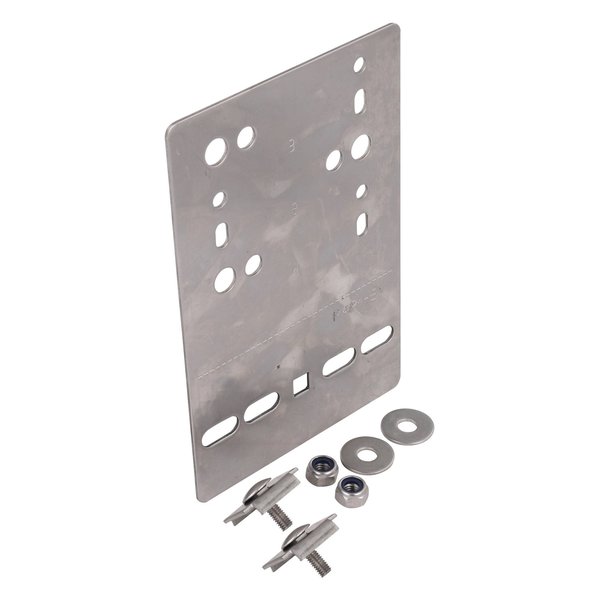

Dehn PAP 1 EX GI ER — Equipotential Bonding Plate For Wire Trays. Manufacturer designation: EB plate for wire cable trays. – For attaching the equipotential bonding clamp for the ring equipoten New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | PAP 1 EX GI ER |
| Article No. (MPN) | 306212 |
| Product Category | Surge Protection |
| Material | StSt |
| Material No. | 1.4301 |
| Astm / aisi | AISI 304 |
| Dimensions | 120 x 180 mm |
| Connection holes for EB conductor with cable lug | 3x Ø11 mm, 3x Ø9 mm, strain relief 3x cable clamp M6 |
| Connection possibilities for EB clamps | PAK … EX KB ER |
| Fixing holes for wire cable tray | wire cable tray [4x] 9 x 20 / [1x] 9 x 9 mm |
| EX zone | 2/22 |
| Short-circuit current AC (50 Hz / 5 s) | 1.5 kA |
| Short-circuit current DC (5 s) | 250 A |
| EAN / GTIN | 4013364327412 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
