Description

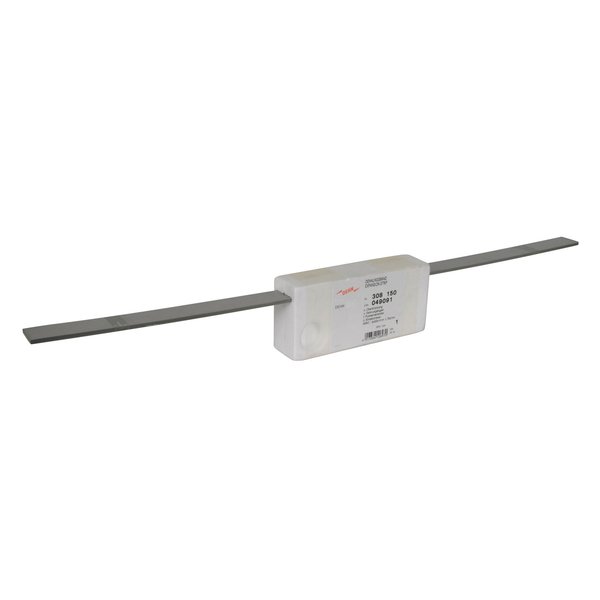

Dehn DB 700X30X4 V2A — Expansion Strap. Manufacturer designation: Expansion strap for foundation earth electrodes. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | DB 700X30X4 V2A |
| Article No. (MPN) | 308150 |
| Product Category | Earthing & Lightning Protection |
| Material of strap | StSt |
| Dimensions of strap (l x w x d) | approx. 700 x 30 x (4 x 1) mm |
| Cross section | 120 mm² |
| Material of block | polystyrene |
| Dimensions of block (l x w x d) | 180 x 85 x 45 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 6 kA |
| EAN / GTIN | 4013364106970 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
