Description

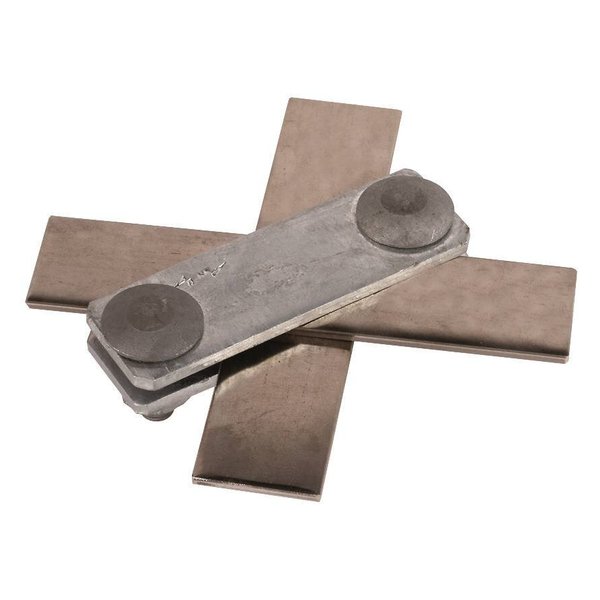

Dehn SVK FL30 V4A — SV Clamp. Manufacturer designation: For flat conductors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | SVK FL30 V4A |
| Article No. (MPN) | 308239 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | StSt (V4A) |
| Material No. clamp | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI clamp | 316Ti / 316L / 316 |
| Clamping range Fl / Fl | 30 / 30 mm |
| Screw | e M10 x 30 mm |
| Material No. bolt / nut | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI bolt / nut | 316Ti / 316L / 316 |
| Dimensions (l1 x d1) | 94 x 3 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 3.9 kA |
| EAN / GTIN | 4013364090866 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
