Description

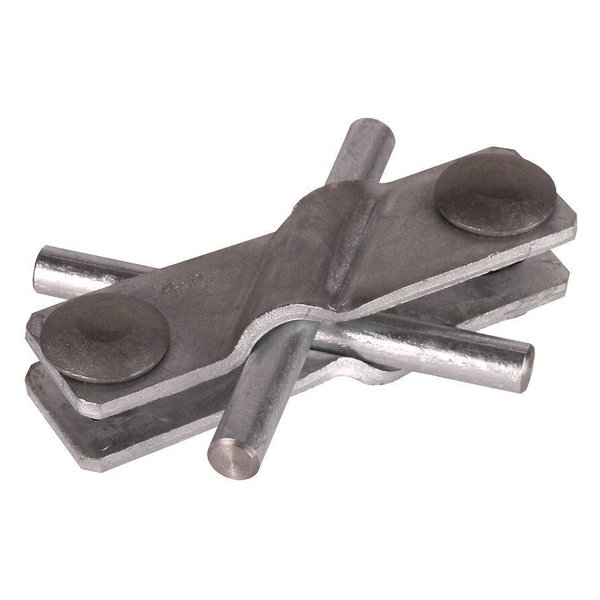

Dehn SVK 7.10 7.10 FL40 STTZN — SV Clamp. Manufacturer designation: For flat and round conductors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | SVK 7.10 7.10 FL40 STTZN |
| Article No. (MPN) | 308320 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | St/tZn |
| Clamping range Rd / Rd | 7-10 / 7-10 mm |
| Clamping range Rd / Fl | 7-10 / 30-40 mm |
| Clamping range Fl / Fl | 30-40 / 30-40 mm |
| Screw | e M10 x 30 mm |
| Dimensions (l1 x d1) | 108 x 4 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 14.0 kA |
| EAN / GTIN | 4013364028531 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
