Description

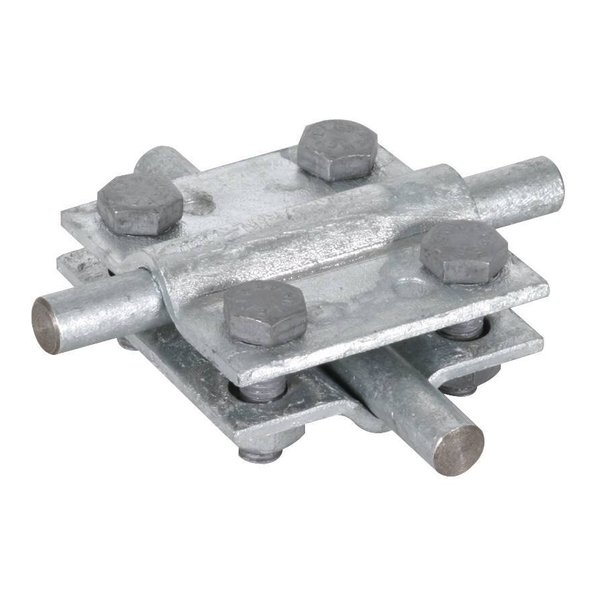

Dehn KS 8.10 8.10 FL30 STTZN — Cross Unit. Manufacturer designation: Without intermediate plate, for two round and flat conductors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | KS 8.10 8.10 FL30 STTZN |
| Article No. (MPN) | 318251 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | St/tZn |
| Clamping range Rd / Rd | 8-10 / 8-10 mm |
| Clamping range Rd / Fl | 8-10 / 30 mm |
| Clamping range Fl / Fl | 30 / 30 mm |
| Dimensions | 60 x 60 x 3 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 14 kA |
| EAN / GTIN | 4013364046559 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
