Description

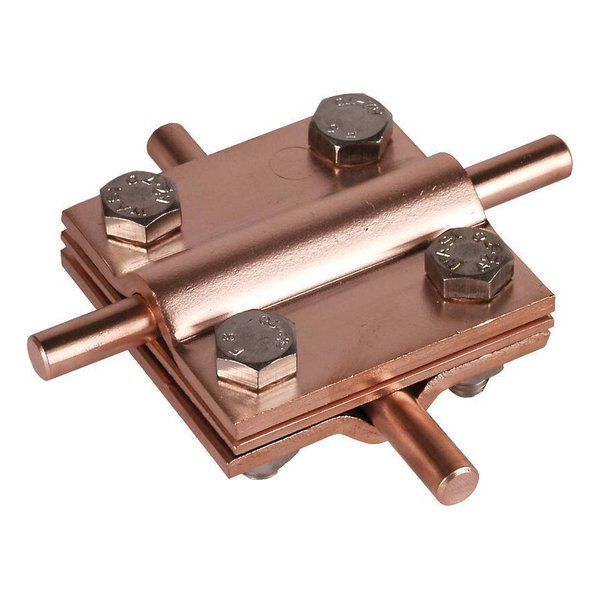

Dehn KS 8.10 8.10 FL30 ZP CU — Cross Unit. Manufacturer designation: With intermediate plate, for round and flat conductors. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | KS 8.10 8.10 FL30 ZP CU |
| Article No. (MPN) | 319207 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | Cu |
| Clamping range Rd / Rd | 8-10 / 8-10 mm |
| Clamping range Rd / Fl | 8-10 / 30 mm |
| Clamping range Fl / Fl | 30 / 30 mm |
| Clamping range (stranded / cable) | 35-70 mm² |
| Material No. bolt / nut | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI bolt / nut | 316Ti / 316L / 316 |
| Dimensions | 60 x 60 x 3 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 29 kA |
| EAN / GTIN | 4013364020047 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
