Description

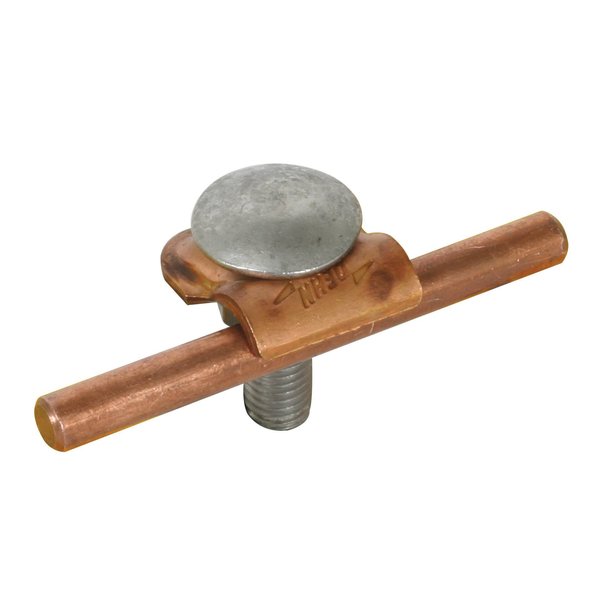

Dehn KB 6.10 FRM10X35 CU — Clamping Frame. Manufacturer designation: Clamping piece variants. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | KB 6.10 FRM10X35 CU |
| Article No. (MPN) | 390157 |
| Product Category | Earthing & Lightning Protection |
| Material of clamp | Cu |
| Clamping range Rd | 6-10 mm |
| Clamping range (stranded / cable) | 35-120 mm² |
| Screw | e M10 x 35 mm |
| Material of screw / nut | StSt |
| Standard | EN 62561-1 |
| EAN / GTIN | 4013364032194 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
