Description

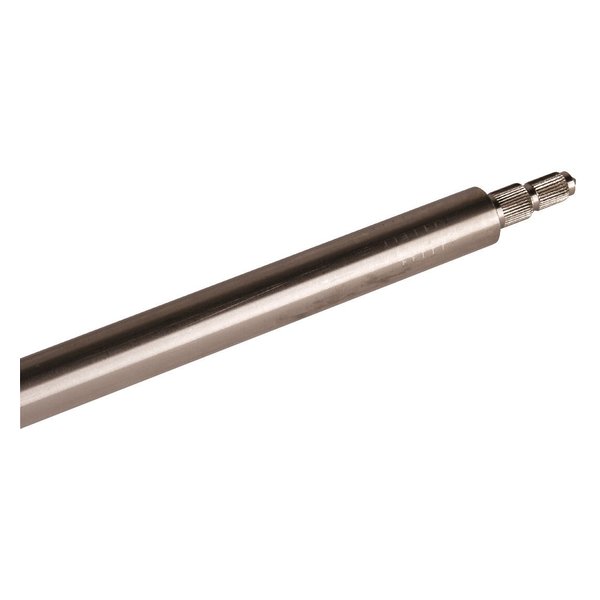

Dehn TE 20 1500 AZ V4A — Earth Rod. Manufacturer designation: Type AZ. DEHN earth rod set D18 014, sectional, with offset knurled pin and bor New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Dehn |
|---|---|
| Model / Type | TE 20 1500 AZ V4A |
| Article No. (MPN) | 620902 |
| Product Category | Earthing & Lightning Protection |
| Material | StSt (V4A) |
| Material No. | 1.4571 / 1.4404 / 1.4401 |
| Astm / aisi | 316Ti / 316L / 316 |
| Rod length (l1) | 1500 mm |
| Diameter Ø (d1) | 20 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 4.2 kA |
| Standard | EN 62561-2 |
| Rod length | 1000 mm |
| Diameter Ø | 20 mm |
| Pin diameter | 10 / 13 mm |
| Tensile strength | 500-730 N/mm² |
| Conductivity | ≤ 1.25 m / Ohm mm² |
| Resistivity | ≤ 0.8 Ohm mm² / m |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C) | 4.2 kA |
| For earth rods Ø | 20-25 mm |
| Clamping range Rd | 8-10 mm |
| Connection (solid/stranded) | 4-50 mm² |
| Screw | di M8 x 20 / 25 mm |
| Version | for earth rod Ø20 mm. |
| Dimensions | 20 x 40 mm |
| EAN / GTIN | 4013364021914 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Dehn dealer. All parameters are taken from the official manufacturer documentation.
