Description

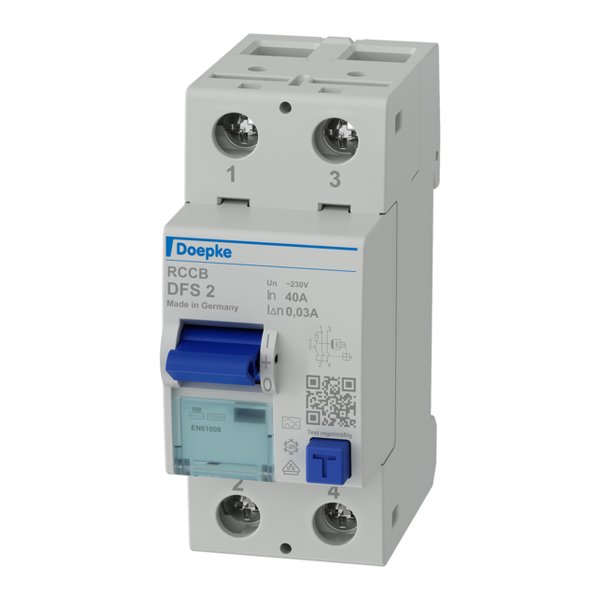

Doepke DFS 2 040-2/0,03-A — RCCB. Manufacturer designation: Residual current circuit-breaker DFS 2 040-2/0,03-A. Residual current circuit-breakers, two-pole, 40 A, 0,03 A, Type A, N left or right New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Doepke |
|---|---|
| Model / Type | DFS 2 040-2/0,03-A |
| Article No. (MPN) | 09134601 |
| Product Category | Circuit Breakers |
| Variant | Basic design |
| Number of poles | 2 |
| Residual current type | A |
| Rated current (AC) | 40 A |
| Rated residual current IΔn | 0,03 A |
| Short-time delayed | No |
| Selective | No |
| Neutral conductor position | left or right |
| HD design | No |
| Series | DFS 2 A |
| Maximum disconnection times | 1 · IΔn: ≤ 300 ms; 5 · IΔn: ≤ 40 ms |
| Min. Contact opening | 4 mm |
| Rated voltage (AC) | 230 V |
| Rated short-circuit current | 10 kA |
| Surge current strength | 0.25 kA |
| Max. Total rated switching capacity | 500 A |
| Rated insulation voltage | 400 V |
| Rated impulse withstand voltage | 4 kV |
| Rated frequency | 50 Hz |
| Thermal Backup-fuse OCPD | 40 A |
| EAN / GTIN | 4014712069343 |
| Condition | New & original |
| Availability | On request |
Download official Doepke data sheet (PDF)
Independent distributor — not an authorised Doepke dealer. All parameters are taken from the official manufacturer documentation.
