Description

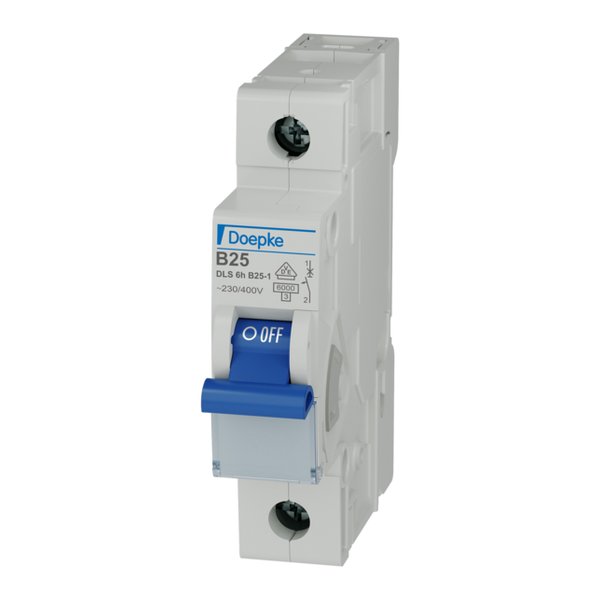

Doepke DLS 6h B25-1 — MCB. Manufacturer designation: Miniature circuit-breakers DLS 6h B25-1. Circuit-breakers, one-pole, B-characteristic, 25 A@230 V, 400 V (AC) / 25 A@60 V (DC), 6 kA, for commercial sector applications New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Doepke |
|---|---|
| Model / Type | DLS 6h B25-1 |
| Article No. (MPN) | 09914025 |
| Product Category | Circuit Breakers |
| Number of poles | 1 |
| Tripping characteristic | B |
| Rated voltage type | AC/DC |
| Rated current AC (typ.) | 25 A |
| Rated current DC (typ.) | 25 A |
| Rated voltage (AC) | 230 V, 400 V |
| Rated voltage (DC) | 60 V |
| Rated short-circuit current | 6 kA |
| Series | DLS 6h |
| Supply side | left or right |
| Overload tripping factor | 1.13 … 1.45 |
| Adjustment range of short-circuit tripping | 3 … 5 |
| Tripping factor over frequency band | 1.5 at DC; 1.1 at 100 Hz; 1.2 at 200 Hz; 1.3 at 300 Hz; 1.4 at 400 Hz |
| Reference temperature thermal release | 30 °C |
| Rated current (AC) | 25 A |
| Rated current (DC) | 25 A |
| Rated insulation voltage | 2000 V |
| Rated impulse withstand voltage | 4 kV |
| Rated frequency | 50 Hz (16.67 Hz … 60 Hz) |
| Max. I²t let-through value | 45 kA2s |
| EAN / GTIN | 4014712161788 |
| Condition | New & original |
| Availability | On request |
Download official Doepke data sheet (PDF)
Independent distributor — not an authorised Doepke dealer. All parameters are taken from the official manufacturer documentation.
