Description

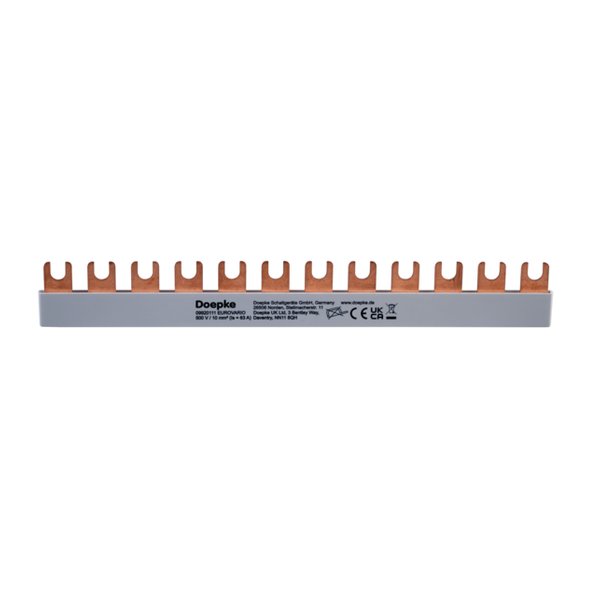

Doepke EV-S G 1.12.70 — Busbar. Manufacturer designation: Wiring components EV-S G 1.12.70. Busbar, fork, 1-pole, 12 MW (module width), 63 A (L1 x 12) New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Doepke |
|---|---|
| Model / Type | EV-S G 1.12.70 |
| Article No. (MPN) | 09920111 |
| Product Category | Distribution & Installation |
| Type of busbar | RCCB and MCB busbars |
| Module widths | 12 |
| Number of Phases | 1 |
| Neutral conductor existent | No |
| Series | EV-S G |
| Suitable for model range | DLS 6 |
| Phase arrangement | L1 x 12 |
| Number of connectable devices | 12 |
| Specification connection | fork |
| Rail cross-section | 10 mm² |
| Modular dimension, rail | 17.8 mm |
| Dielectric constant | 4 |
| Creep resistance | 600 |
| Rated voltage (AC) | 500 V |
| Rated current (AC) | 63 A at 35°C |
| Rated short-circuit current | 15 kA |
| Rated impulse withstand voltage | 4.5 kV |
| Bar material | E-CU F25 |
| Insulated | Yes |
| Insulating material | PC/ABS |
| EAN / GTIN | 4014712021518 |
| Condition | New & original |
| Availability | On request |
