Description

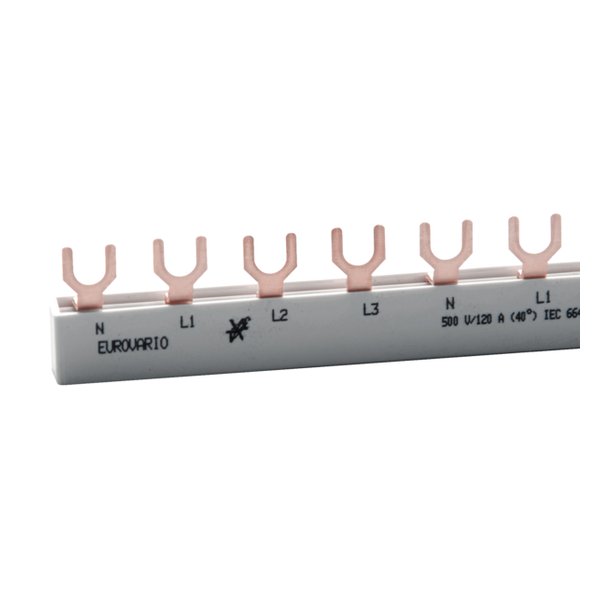

Doepke EV-S G 4.12.120 L — Busbar. Manufacturer designation: Wiring components EV-S G 4.12.120 L. Busbar, fork, 4-pole, 12 MW (module width), 63 A ((N, L1, L2, L3) x 3) New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Doepke |
|---|---|
| Model / Type | EV-S G 4.12.120 L |
| Article No. (MPN) | 09920125 |
| Product Category | Distribution & Installation |
| Type of busbar | RCCB and MCB busbars |
| Module widths | 12 |
| Number of Phases | 3 |
| Neutral conductor existent | Yes |
| Series | EV-S G |
| Suitable for model range | DFS 4 |
| Phase arrangement | (N, L1, L2, L3) x 3 |
| Number of connectable devices | 3 |
| Specification connection | fork |
| Rail cross-section | 10 mm² |
| Modular dimension, rail | 17.8 mm |
| Dielectric constant | 4 |
| Creep resistance | 600 |
| Rated voltage (AC) | 500 V |
| Rated current (AC) | 63 A at 35°C |
| Rated short-circuit current | 15 kA |
| Rated impulse withstand voltage | 4.5 kV |
| Bar material | E-CU F25 |
| Insulated | Yes |
| Insulating material | PC/ABS |
| EAN / GTIN | 4014712123816 |
| Condition | New & original |
| Availability | On request |
Download official Doepke data sheet (PDF)
