Description

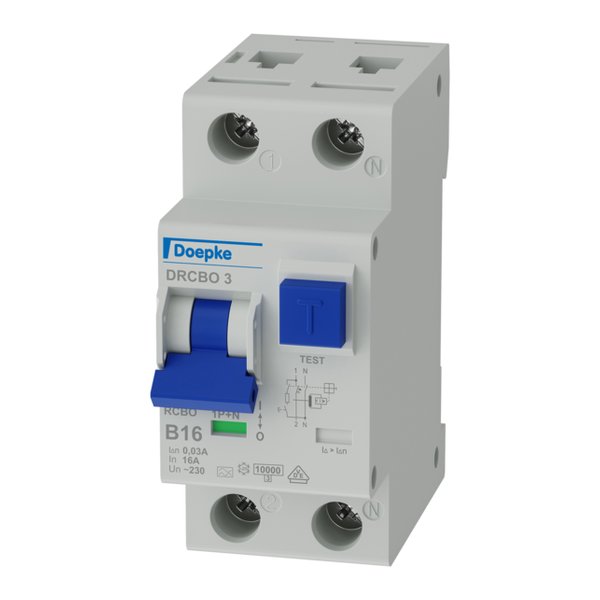

Doepke DRCBO 3 B16/0,03/1N-A — RCBO. Manufacturer designation: Residual current operated circuit-breakers with integral overcurrent protection DRCBO 3 B16/0,03/1N-A. Residual current operated circuit-breaker with integral overcurrent protection, one-pole+N, 16 A, 0,03 A, 10 kA, B-characteristic, Type A New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Doepke |
|---|---|
| Model / Type | DRCBO 3 B16/0,03/1N-A |
| Article No. (MPN) | 09932104 |
| Product Category | Circuit Breakers |
| Number of poles | 1+N |
| Residual current type | A |
| Rated current (AC) | 16 A |
| Rated residual current IΔn | 0,03 A |
| Short-time delayed | No |
| Tripping characteristic | B |
| Series | DRCBO 3 |
| Selective | No |
| Rated voltage (AC) | 230 V |
| Rated short-circuit current | 10 kA |
| Surge current strength | 0.25 kA |
| Max. Total rated switching capacity | 10 kA |
| Rated insulation voltage | 440 V |
| Rated impulse withstand voltage | 4 kV |
| Rated frequency | 50 Hz |
| Back-up fuse type | gG |
| Overvoltage class | III |
| Neutral conductor position | right |
| Cross section solid | 1-wire: 1 mm² … 25 mm² |
| Connecting capacity flexible | 1-wire: 1 mm² … 16 mm² |
| Condition | New & original |
| Availability | On request |
