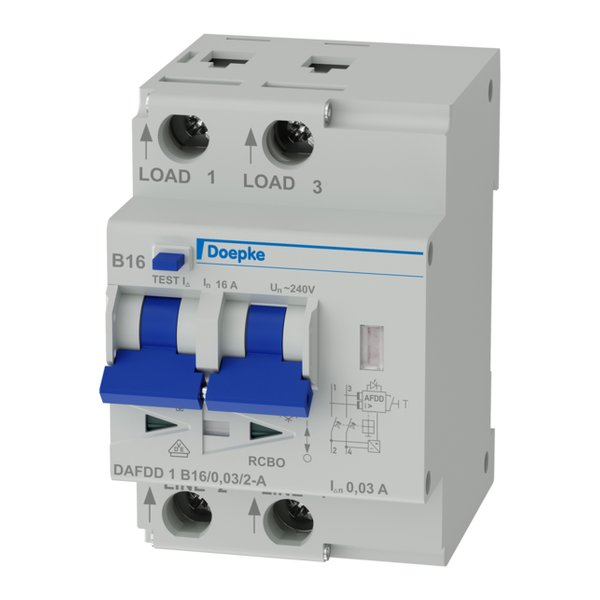

Doepke DAFDD 1 B16/0,03/2-A — AFDD. Manufacturer designation: Arc-fault detection devices DAFDD 1 B16/0,03/2-A. Fire protection switch, two-pole, 16 A, 0,03 A, B-characteristic, Type A New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Doepke |
|---|---|
| Model / Type | DAFDD 1 B16/0,03/2-A |
| Article No. (MPN) | 09961302 |
| Product Category | Circuit Breakers |
| Number of poles | 2 |
| Residual current type | A |
| Tripping characteristic | B |
| Rated voltage (AC) | 240 V |
| Rated current AC (typ.) | 16 A |
| Rated residual current IΔn | 0,03 A |
| Short-time delayed | No |
| Series | DAFDD 1 |
| Rated current (AC) | 16 A |
| Selective | No |
| Operating voltage (AC) | 240 V (170 V … 264 V) |
| Operating frequency | 50 Hz |
| Rated impulse withstand voltage | 4 kV |
| Rated short-circuit current | 10 kA |
| Surge current strength | 0.25 kA |
| Max. Total rated switching capacity | 10 kA |
| Rated insulation voltage | 250 V |
| Rated frequency | 50 Hz |
| Short-circuit backup-fuse SCPD | 100 A |
| Back-up fuse type | gG |
| Condition | New & original |
| Availability | On request |
