Description

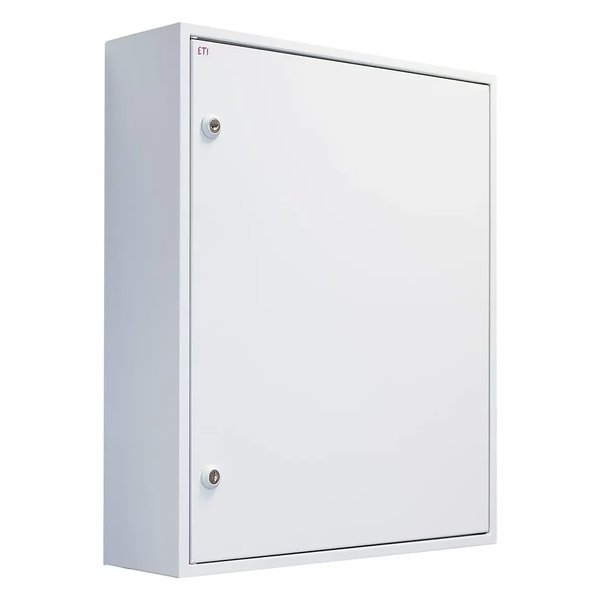

ETI 4XN160 2-7 — Wall Mounted Enclosure. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | 4XN160 2-7 |
| Article No. (MPN) | 001101404 |
| Product Category | Distribution & Installation |
| Function | Enclosure |
| To use with | SOLID GSX system |
| Rated AC voltage | 690 V |
| Network system | 1 phase and 3 phase system |
| Ambient temperature | -5/40 °C |
| Standards | IEC/EN 62208, IEC/EN 60529, IEC/EN 62262, |
| Type of installation | Wall mounting |
| Type of door | Full, Metal door |
| Frame size | 160 |
| Directives | RoHS |
| Key locks | Two locks with a key 1333 code |
| Working temperature | -5-40 °C |
| Type description | Wall mounted enclosure |
| IP rating | IP41 |
| Mechanical resistance | IK10 |
| Height | 1,100 mm |
| Width | 550 mm |
| Depth | 160 mm |
| Application | Indoor use |
| Color | RAL 7035 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
