Description

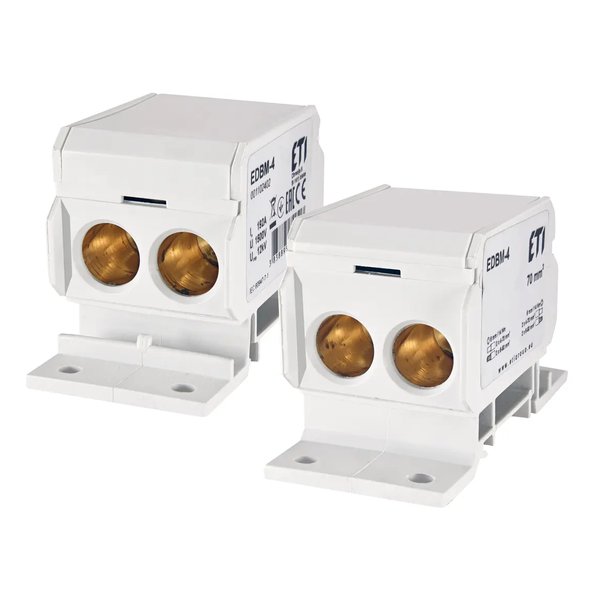

ETI EDBM-4 — Distribution Block. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | EDBM-4 |
| Article No. (MPN) | 001102402 |
| Product Category | Distribution & Installation |
| Type accessories | EDB DIN rail distribution blocks |
| Catalogue subgroup | EDBM DIN rail distribution blocks |
| Max. input cross-section | 70 mm² |
| Type of installation | DIN rail 35 mm |
| Rated current | 192 A |
| Rated AC voltage | 1500 V |
| Rated DC voltage | 1500 V |
| Rated insulation voltage | 1,500 V |
| Short circuit capacity | 12 kA |
| Height | 44 mm |
| Width | 40 mm |
| Depth | 80 mm |
| Rated cross section | 4-70 mm² |
| Body material | PA6 GF25 |
| Clamp material | MO-58 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
