Description

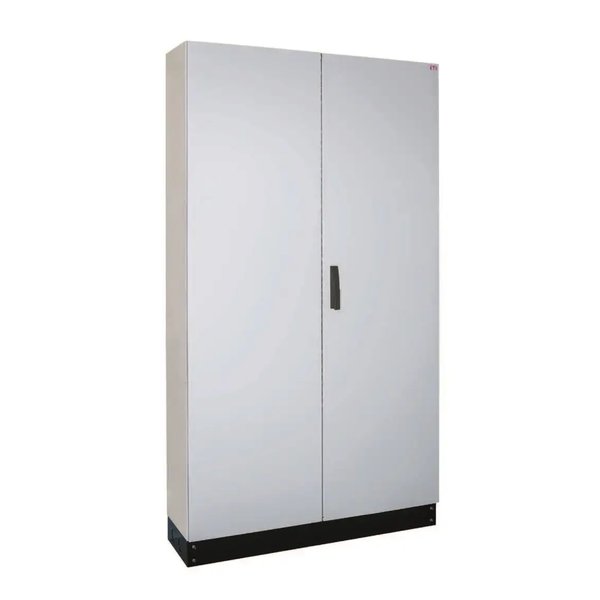

ETI HXS300 4-12 PH1 — Enclosure 1850x1050x300mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | HXS300 4-12 PH1 |
| Article No. (MPN) | 001325104 |
| Product Category | Distribution & Installation |
| Function | Enclosure |
| To use with | SOLID GSX system |
| Rated AC voltage | 690 V |
| Rows (legacy) | 12 |
| Network system | 1 phase and 3 phase system |
| Ambient temperature | -5/40 °C |
| Type of installation | Floor standing |
| Type of door | Full, Metal door |
| Frame size | 300 |
| Frame size (Nr. of rows) | 12 |
| Key locks | 3-points lock system without lock insert |
| Type description | Standing enclosure |
| IP rating | IP55 |
| Mechanical resistance | IK10 |
| Height | 1,850 mm |
| Width | 1,050 mm |
| Depth | 300 mm |
| Application | Indoor use |
| Color | RAL 7035 |
| Working temperature | -5-40 °C |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
