Description

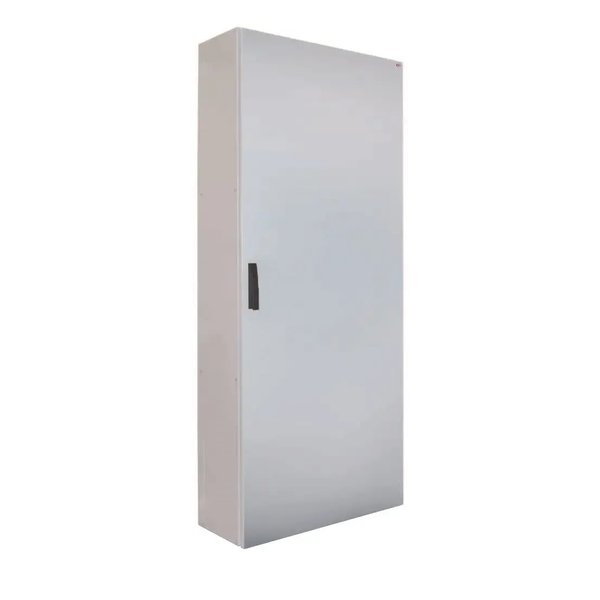

ETI HXS400 3-13 — Enclosure 2000x800x400mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | HXS400 3-13 |
| Article No. (MPN) | 001327509 |
| Product Category | Distribution & Installation |
| Function | Enclosure |
| To use with | SOLID GSX system |
| Rated AC voltage | 690 V |
| Rows (legacy) | 13 |
| Network system | 1 phase and 3 phase system |
| Ambient temperature | -5/40 °C |
| Type of installation | Floor standing |
| Type of door | Full, Metal door |
| Frame size | 400 |
| Frame size (Nr. of rows) | 13 |
| Key locks | 3-points lock system without lock insert |
| Type description | Standing enclosure |
| IP rating | IP65 |
| Mechanical resistance | IK10 |
| Height | 2,000 mm |
| Width | 800 mm |
| Depth | 400 mm |
| Application | Indoor use |
| Color | RAL 7035 |
| Working temperature | -5-40 °C |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
