Description

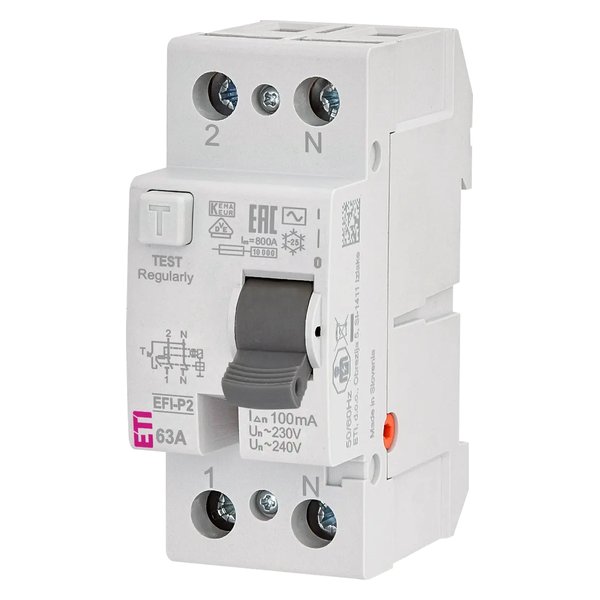

ETI EFI-P2 AC 63/0.1 — Residual Current Circuit Breaker. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | EFI-P2 AC 63/0.1 |
| Article No. (MPN) | 002061223 |
| Product Category | Circuit Breakers |
| Function | RCCB |
| Application | IEC/EN 61008 |
| Built-in depth | 68 mm |
| Rated residual operating current IDn | 0.1 A |
| Rated residual current | 0.1 A |
| Residual current type | AC |
| Rated current | 63 A |
| Depth | 68 mm |
| Type of installation | DIN rail 35 mm |
| Number of poles | 1+N |
| Rated conditional short-circuit current Inc | 10 kA |
| Tripping time | Undelayed |
| Rated AC voltage | 230/240 V |
| Rated frequency | 50/60 Hz |
| Rated cross section | 1-25 mm² |
| Standards | IEC/EN 61008 |
| IP rating | IP20 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
