Description

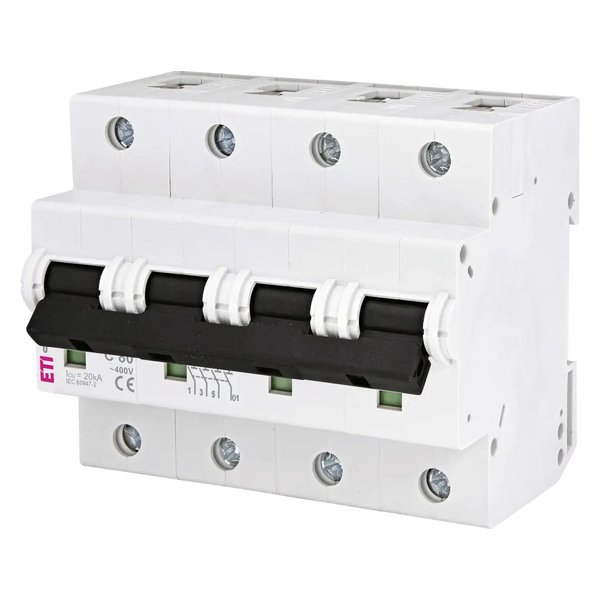

ETI ETIMAT 10 3p+N C80. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | ETIMAT 10 3p+N C80 |
| Article No. (MPN) | 002136731 |
| Product Category | Distribution & Installation |
| Depth | 75 mm |
| Application | IEC/EN 60898-1, IEC 60947-2 |
| IP rating | IP20 |
| Rated current | 80 A |
| Number of poles | 3+N |
| Short circuit capacity | 20 kA |
| Voltage type | AC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated AC voltage | 415 V |
| Rated frequency | 50/60 Hz |
| Rated cross section | 2.5-50 mm² |
| Standards | IEC/EN 60898-1, IEC 60947-2 |
| Function | MCB |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
