Description

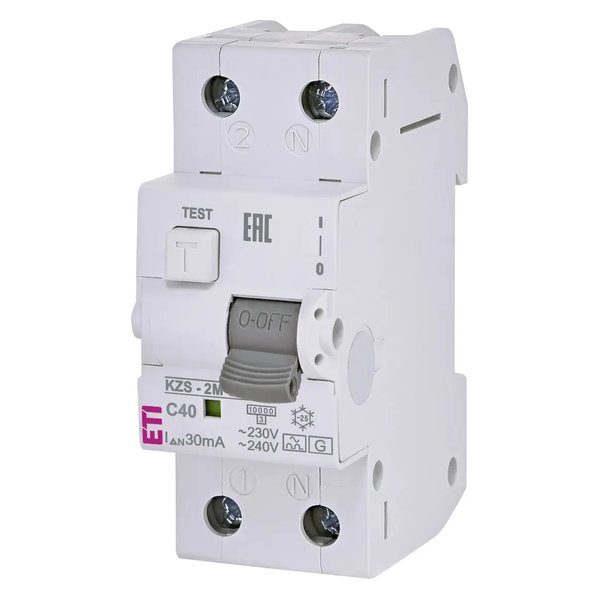

ETI KZS-2M A G/KV C40/0.03. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | KZS-2M A G/KV C40/0.03 |
| Article No. (MPN) | 002174128 |
| Product Category | Distribution & Installation |
| Function | RCBO |
| Rated AC voltage | 240 V |
| Application | IEC/EN 61009, ÖVE E 8601 |
| Rated conditional short-circuit current Inc | 10 kA |
| Rated residual operating current IDn | 0.03 A |
| Rated current | 40 A |
| Rated residual current | 0.03 A |
| Number of poles | 1+N |
| Short circuit capacity | 10 kA |
| Tripping time | G/KV (Short time delay) |
| Rated frequency | 50/60 Hz |
| Rated cross section | 1-25 mm² |
| Standards | IEC/EN 61009, ÖVE E 8601 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
